海洋底の構造と生態系深海堆積物から資源開発まで

地球の表面の大部分を占める海洋は、単なる水の塊ではなく、複雑な地形と多様な生命が共存するダイナミックな世界です。水深に応じて変化する環境条件は、そこに住む生物や蓄積される物質に決定的な影響を与えています。本記事では、深海の層構造から海底に堆積する物質の正体、そして現代社会が直面している環境問題と資源開発の現状について詳しく解説します。

海洋の垂直構造と地形

海洋は水深によっていくつかのゾーンに区分されます。特に深海域では、水圧、温度、塩分濃度が劇的に変化します。水深約6,000mまでをアビサルゾーン(深海帯)と呼び、さらにその下の6,000mから最大11,000mに達する海溝などの最深部はハダルゾーン(超深海帯)と呼ばれます。

海底の地形は陸上と同様に多様で、火山、海嶺、谷、そして広大な平原が存在します。大陸棚から深い海盆に至るまで、その起伏は海洋循環や生物の分布に深く関わっています。

Bathymetry of the ocean floor showing the continental shelves and oceanic plateaus (red), the mid-ocean ridges (yellow-green) and the abyssal plains (blue to purple). Like land terrain, the ocean floor has mountains including volcanoes, ridges, valleys, and plains.

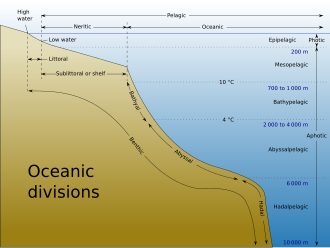

Drawing showing divisions according to depth and distance from shore
World map with ocean topography

海洋の層状構造

海面から底面にかけて、光の届く範囲や水温によって異なる層が形成されています。これにより、それぞれの深度に適応した独自の生態系が構築されています。

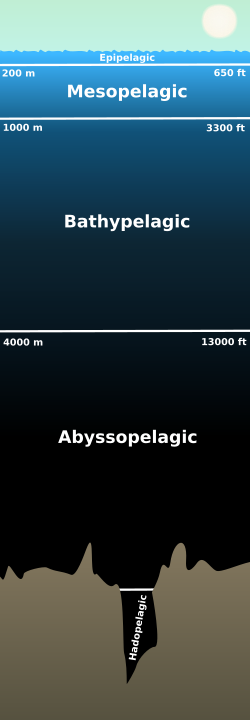

Layers of the pelagic zone

海底堆積物の種類と特性

海底に降り積もる堆積物は、その起源によって大きく分類されます。代表的なものが、陸上から運ばれてくる陸源性堆積物と、海洋生物の遺骸からなる生物源性堆積物です。

生物源性堆積物のうち、生物由来の成分が30%以上含まれるものは「ウーズ」と呼ばれます。これには、石灰質プランクトンの殻からなる石灰質ウーズと、珪藻などの殻からなる珪質ウーズがあります。特に石灰質ウーズは、水深4,000〜5,000mを超えるとカルシウムが溶解するため、それ以上の深海では見られません。

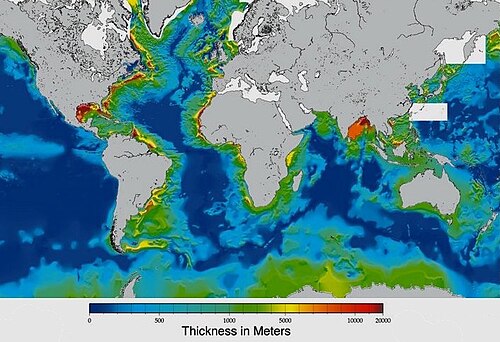

Total sediment thickness of the world's oceans and continental margins in meters.
Satellite image of wind-blown mineral dust over the Atlantic. Dust may become terrigenous sediment on the seabed.
Phytoplankton grow shells which later sink to the seabed to become biogenous sediments. For example, diatoms make silicate shells, which become siliceous ooze.

また、熱水噴出孔付近では化学反応によって鉱物が沈殿し、特有の堆積物が形成されます。

Hydrothermal vent fluids cause chemical reactions that precipitate out minerals that form sediments on the surrounding seafloor.

粒径による分類と環境

堆積物は粒の大きさによって、巨礫、礫、砂、シルト、粘土などに分類されます。粒径は、その場所のエネルギー状態(水流の速さ)を反映しています。大きな粒子は流れの速い高エネルギー環境で堆積し、微細な粒子は穏やかな低エネルギー環境でゆっくりと沈降します。

Sediment types from the Southern Ocean showing many different grain sizes: A) gravel and sand, B) gravel, C) bioturbated mud and sand, and D) laminated clays and silts.[10]

ベンソス(底生生物)の多様性

海洋の生物は、漂流するプランクトンや自由に泳ぐネクトン(遊泳生物)に対し、海底に生息するものをベンソス(底生生物)と呼びます。ベンソスは、泥や砂などの柔らかい底質に潜る生物から、岩場に固着して生活する牡蠣やフジツボのような生物まで、極めて多様です。

この物理的な環境の多様性が、種数の増加につながっています。ベンソスの種数は100万種を超えるとされており、これは表層や中層に住む生物の種数を大幅に上回っています。

Common stingray foraging for invertebrates in seafloor sediment.

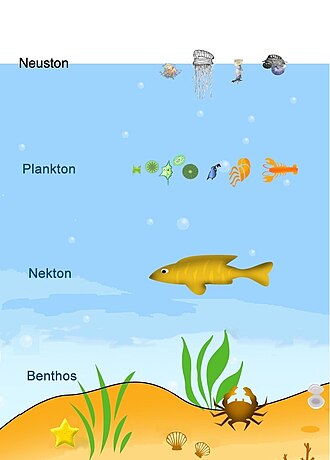

Benthos (organisms that live at the ocean floor) can be contrasted with neuston (organisms that live at the ocean surface) plankton (organisms that drift with water currents) and nekton (organisms that can swim against water currents)

海洋底への人間活動の影響

現代において、人類の活動は深海にまで深刻な影響を及ぼしています。特に問題となっているのがプラスチック汚染です。2020年の研究では、オーストラリア沖の調査に基づき、地球の海底には約1,400万トンのマイクロプラスチックが蓄積していると推定されました。

底曳き網漁業の課題

底曳き網(ボトムトラウリング)は、世界で最も漁獲量が多い手法の一つですが、海底地形を物理的に破壊し、生態系にダメージを与えます。また、海底に貯蔵されていた二酸化炭素を放出させ、気候変動に寄与しているという指摘もあります。

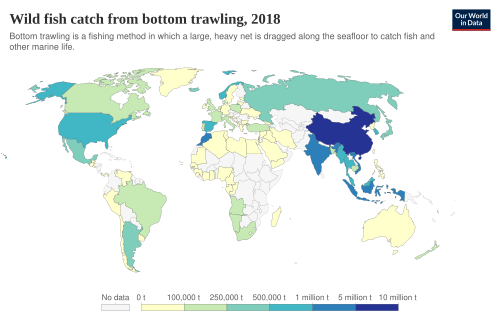

Bottom trawling
The Celtic Explorer, a research vessel engaged in bottom trawling

深海採掘の現状と展望

深海平原に存在する多金属結核(マンガン、ニッケル、コバルト、銅などを含む塊)への関心が高まっています。特にコバルトの埋蔵量は陸上の5倍に達すると推定されており、電気自動車などのバッテリー材料として注目されています。

国際海底機構(ISA)が国際海域の規制を担っていますが、商業的な採掘はまだ始まっておらず、環境への影響を懸念する声が根強くあります。一方で、米国やノルウェー、クック諸島などの国々が、自国の排他的経済水域(EEZ)内での探査や開発を推進する動きを見せています。

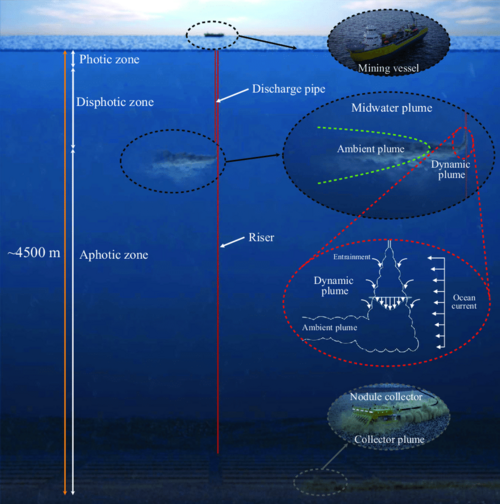

Schematic of a polymetallic nodule mining operation. From top to bottom, the three zoom-in panels illustrate the surface operation vessel, the midwater sediment plume, and the nodule collector operating on the seabed. The midwater plume comprises two stages: (i) the dynamic plume, in which the sediment-laden discharge water rapidly descends and dilutes to a neutral buoyancy depth, and (ii) the subsequent ambient plume that is advected by the ocean current and subject to background turbulence and settling.

Key Facts

  • 深海の最深部: ハダルゾーンと呼ばれ、水深6,000mから11,000mに及びます。
  • ウーズの正体: 生物由来成分が30%以上の堆積物で、石灰質と珪質の2種類があります。
  • 生物多様性: 底生生物(ベンソス)の種数は100万種を超え、遊泳生物よりも圧倒的に多い。
  • プラスチック汚染: 海底には推定1,400万トンのマイクロプラスチックが堆積しています。
  • 深海資源: 多金属結核にはコバルトなどの希少金属が豊富に含まれており、次世代の資源として期待されています。

海洋底の特性まとめ

海洋底の深度別・特性比較
深度範囲 (m) 海底面積の割合 主な特徴・環境
0 – 200 7.30% 大陸棚、光が届く浅海域
201 – 1,000 4.38% 大陸斜面、移行帯
1,001 – 4,000 35.22% 深海平原の始まり、石灰質ウーズの限界付近
4,001 – 6,000 52.08% アビサルゾーン(深海帯)、広大な平原
6,001以上 約1%未満 ハダルゾーン(超深海帯)、海溝などの最深部

Frequently Asked Questions

石灰質ウーズが深海で見つからないのはなぜですか?

水深約4,000〜5,000mを超えると、高圧および低温の影響でカルシウムが溶解しやすくなるため、石灰質の殻が蓄積できず消えてしまうからです。

ベンソスとプランクトンの違いは何ですか?

プランクトンは水流に乗って漂う生物であるのに対し、ベンソスは海底の表面や堆積物の中に生息する底生生物のことを指します。

底曳き網漁が環境に与える影響とは?

網が海底を直接引きずるため、サンゴなどの物理的な生息地を破壊するほか、海底に固定されていた炭素を攪乱し、二酸化炭素として放出させる可能性があります。

多金属結核とは具体的にどのようなものですか?

深海平原の海底に点在する鉱物の塊で、マンガン、ニッケル、コバルト、銅などの有用金属が濃縮されており、商業的な価値が高い資源です。

深海採掘はすでに始まっているのですか?

2024年7月時点で、国際海域における商業規模の採掘はまだ行われていません。現在は国際海底機構(ISA)による探査ライセンスの付与と規制の策定段階にあります。

References

  1. Kump, Lee R.; Kasting, James F.; Crane, Robert G. (2010). "Chapter 7. Circulation of the Solid Earth". The Earth System (3rd ed.). New Jersey: Pearson Education, Inc. pp. 122–148.  .
  2. "Open Ocean – Oceans, Coasts, and Seashores". National Park Service. Retrieved 13 October 2021.
  3. NOAA. "Ocean floor features". National Oceanic and Atmospheric Administration. Retrieved 13 October 2021.
  4. Flood, Roger D.; Piper, D.J.W. (1997). "Preface: Depth Below Seafloor Conventions". In Flood; Piper; Klaus, A.; Peterson, L.C. (eds.). Proceedings of the Ocean Drilling Program, Scientific Results. Vol. 155. p. 3. :10.2973/odp.proc.sr.155.200.1997. we follow Ocean Drilling Program (ODP) meters below seafloor (mbsf) convention
  5. Parkes, R. John; Henrik Sass (2007). Barton, Larry L. (ed.). Sulphate-reducing bacteria environmental and engineered systems. Cambridge University Press. pp. 329–358. :10.1017/CBO9780511541490.012.  . Archived from the original on 25 July 2011. Retrieved 11 June 2010. metres below the seafloor (mbsf)
  6. Chester, Roy; Jickells, Tim (2012). "Chapter 15. The components of marine sediments". Marine Geochemistry (3rd ed.). Blackwell Publishing Ltd. pp. 321–351.  .
  7. Chester, Roy; Jickells, Tim (2012). "Chapter 13. Marine sediments". Marine Geochemistry (3rd ed.). Blackwell Publishing Ltd. pp. 273–289.  .
  8. "The Bottom of the Ocean," Marine Science
  9. "Types of Marine Sediments", Article Myriad
  10. Grobe, Hannes; Kiekmann, Bernhard; Hillenbrand, Claus-Dieter. "The memory of polar oceans" (PDF). AWI: 37–45.
